Jigs and Fixture Design Services

If you are looking for high quality and precision in your designs at an affordable rate, you have come to the right place.

We specialize in providing jigs and fixture design services utilizing the concept of feature based modelling which lets you access simulation applications that can help you in visually analysing production processes.

While these also serve as inputs to automated manufacturing applications, our assembly design aids are aimed at directly relating tooling models and fixture designs to the geometry of the work pieces.

Our team of design engineers is looking to fulfil each of your requirements in the design of jigs and fixtures

These are some of our forte, which should serve as the highlights of our services

Highly qualified and experienced team of designers with an advanced level of dexterity with CAD design applications.

Our ability to cater to your requirements in providing customized and innovative designs for your new product along with the best customer services.

Our expertise in handling complex designs and new product development cycles.

A blend of least turnaround time and affordable price, resulting in the best savings for you.

An efficient design that reduces your production costs and the product lifecycle costs

Our portfolio of design services encompasses the following

Assembly fixtures

Hydraulic and Pneumatic fixtures

Checking fixtures and check gauges

Testing fixtures

Welding and Machining fixtures

Woodworking jigs and framing jigs

Our Sample Projects

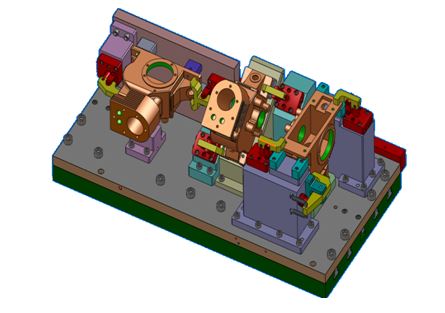

Hydraulic Fixture with in build oil Holes for Crank Case

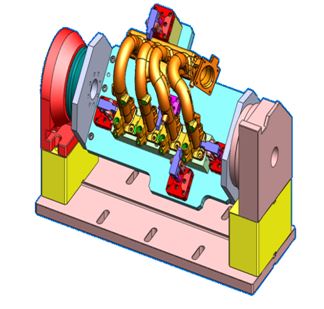

Hydraulic Fixture with indexing unit for Inlet Manifold

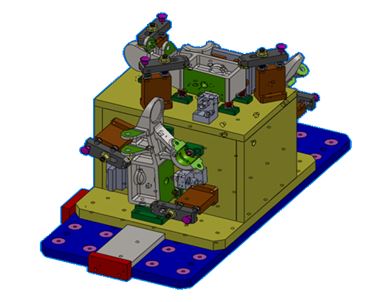

Manuel Fixture for
Bearing Cap
